How Do I Know What Size Carbide Insert To Use?

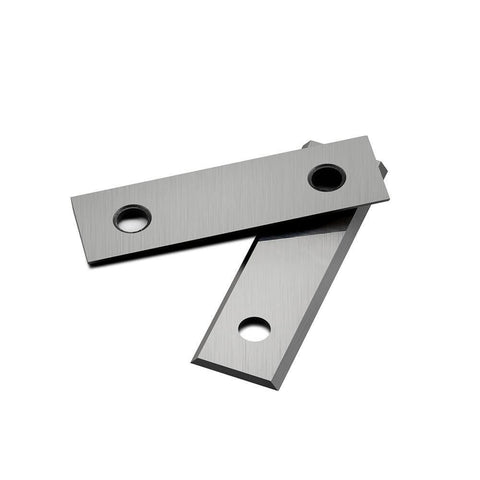

Determining the appropriate size of carbide insert knife to use depends on several factors, including the specific machining operation, the type of tool holder, and the machine's capabilities. Here are some key considerations to help you determine the size of the carbide insert knife to use:

• Tool Holder Compatibility: Carbide insert knives are designed to fit specific cutterheads or tooling systems. Different cutterheads have designated insert sizes and shapes that they can accommodate. Therefore, it's essential to check the specifications of your tool holder or tooling system to identify the compatible insert sizes.
• Machining Operation: The type of machining operation you are performing will also influence the size of the carbide insert. For turning operations, the insert size is determined by factors such as the depth of cut, the desired surface finish, and the available space within the workpiece. In milling operations, factors such as the width of the cut, the number of cutting edges required, and the available horsepower of the machine can help determine the appropriate insert size.
• Machine Capacity: The capacity of your machine, particularly the maximum cutting diameter or cutting width, will also influence the size of the carbide insert. It's important to consider the machine's capabilities and ensure that the chosen insert size fits within the machine's working envelope.
• Cutting Parameters: The chosen insert size should be compatible with the desired cutting parameters, such as cutting speed, feed rate, and depth of cut. These parameters may vary based on the material being machined, the desired productivity, and the specific recommendations provided by the insert manufacturer.
• Application Requirements: Consider the specific requirements of your machining application. If you need to achieve tight tolerances, fine surface finishes, or specific chip control, you may need to select an insert size that allows for the necessary cutting geometry and chip breaker design.
• Manufacturer Recommendations: It's advisable to consult the manufacturer's recommendations for the particular carbide insert you are using. Manufacturers often provide guidelines and recommendations for insert sizes based on the intended application, cutting conditions, and machine parameters.

Ultimately, selecting the right size of carbide insert involves considering the compatibility with your tool holder, the requirements of the machining operation, and the limitations of your machine. It's always a good practice to consult with tooling experts or refer to manufacturer guidelines for specific recommendations based on your unique requirements.
